EVERSPRING Eyelets & Catalogue List
Material
95% Al2O3
99.5% Al2O3
99.8% Al2O3
3Y-ZrO2
TiO2
Other materials available upon request
Surface & Hardness
Normal polish Ra1.0 micron
Fine polishing Ra0.4-0.6 micron
Diamond polishing Ra 0.2 micron
Vickers hardness: 1,800 to 2,000
Tolerance: according DIN 7168 -1
Properties
Wear resistant
Corrosion resistant
Heat resistant
Stable dimensions
Lightweight
Long performance life.
- Grooved Eyelets
- Custom products available according to customer's drawings or samples.
- Slotted Eyelets

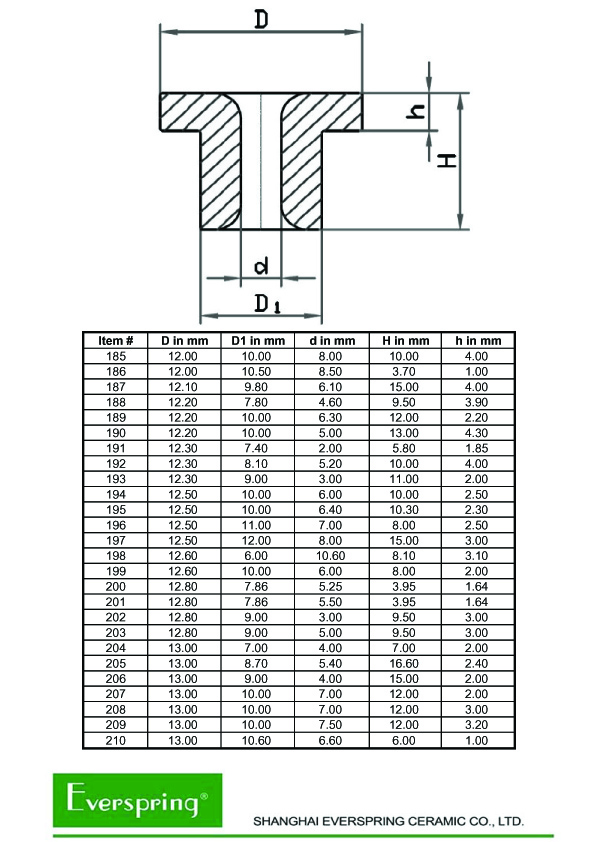

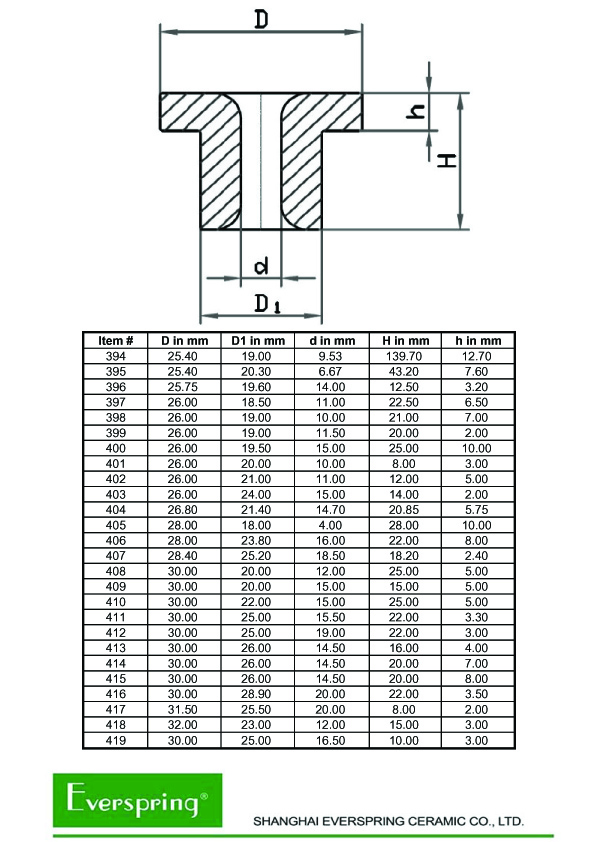

Standard eYELET CATALOGUE
GROOVED eYELET CATALOGUE
slotted eYELET CATALOGUE
.
Notes:
1, Above listed products are available to order and deliver from stock.
2, Customized products can be provided if you don't find the exact size from above list. Please contact sales@everspringceramic.com to get support or send your design drawing directly to us.
